P336

P336
Item# P336
$90.00

Product Description

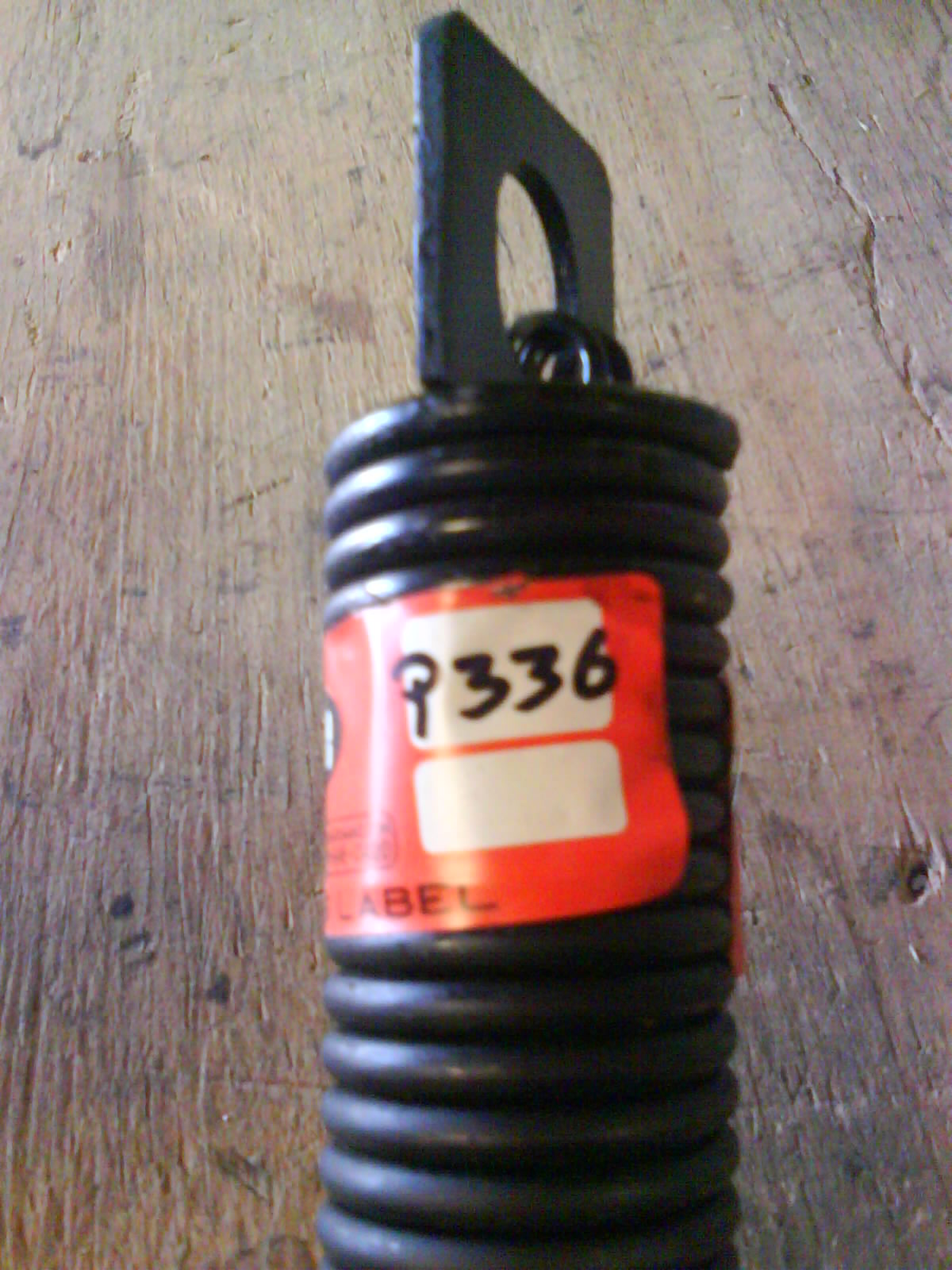

P336



Length Over Coils: 36" in.

Outside Diameter: 2" in.

Type of Ends: PLUG

Wire Diameter & Gauge: (.244)#3

Initial Tension: 165-185**

Max. Allowable Stretch: 24.25" in.

SPECIAL ORDER - PLEASE CALL 818-846-3301 TO ORDER

**Initial Tension is the load in pounds required to stretch the spring the first inch only. Each additional inch of stretch is called the "rate" and is a fixed amount that is added to the initial tension. The rate varies with each spring size and length.
